PAGE #24
"12000" SERIES
OPTIONAL EQUIPMENT AND ACCESSORIES:
1 - #1640 - Pair 35mm 2000 foot capacity clamp type Rewinder
1 - #1809 - R-2 35mm Film Splicer
5 - #12815-16 - 15" PM coaxial Speaker in enclosed bass-reflex baffle to accommodate the
full output of the #12030 Amplifier
4 - #3712 - 50 foot Inter-speaker Cable and Connector Assembly
RECOMMENDED SPARE PARTS AND OPERATING SUPPLIES:
6 - # 399 - Exciter Lamp
5 - # 400 - Amplifier Pilot Lamp
6 - # 411 - Framing and Threading Lamp
2 - # 415 - Amplifier Pilot Lamp
1 - #1618 - 1-Pint Can Film Cement
1 - #1840 - 1-Pint Can Chain Oil
1 - #1866 - 1-Pint Can General Mechanism Oil
1 - #1874 - 1-Pint Can Intermittent Oil
2 - #3800 - 115 Volt Changeover Coil
4 - #4085 - Amplifier Fuse
2 - #4259 - Changeover Microswitch
4 - #4301 - 6 J 7 Amplifier Tube
4 - #4310 - 5 U 4 G Amplifier Tube
4 - #4314 - 6 N 7 G Amplifier Tube
1 - #4321 - 5 Y 4 G Amplifier Tube
2 - #4322 - 6 J 5 Amplifier Tube
8 - #4327 - 6 L 6 G Amplifier Tube
1 - #4359 - 117 N 7 GT Amplifier Tube
2 - #4453A2 - Photo Electric Cell
2 - #4539 - 1 ampere Fuse
6 - #5819 - 2000 foot capacity 35mm Welded Wire Reel
CONVERSIONS:
For Field or Factory installation specify for each "12000" projector
1 - 12690 - "Koolite" Assembly with Installation Instructions
preferably when arc lamp light source is 70 amperes or above.
Factory or Field-Convertible for the projection of Cinemascope
or Superscope Film - (See Conversions - Pages 25 and 28)
Factory of Field-Convertible for the projection of non-anamor-
phic Vistavision Film - (See Conversions - Page 25)

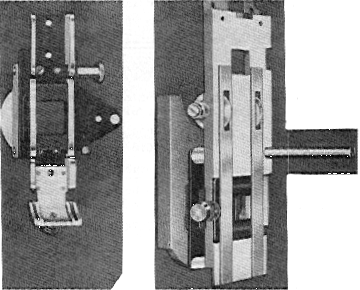

"2230" "12650" | |
"2230" The improved De Vry film gate holds film securely and with equalized tension from a point above the aperture to the intermittent sprocket- guaranteeing a rock-steady image. The gate assembly is quickly and easily demountable as a unit, without tools for cleaning and adjustment between reels. "12650" The aperture plate casting will not warp under continuous heat of even the highest in- tensity arc lamps. Film guide rollers assure picture steadiness and eliminate side sway of film. Highly polished and ground film rails guide film accurately and safely to the inter- mittent sprocket. |  |
